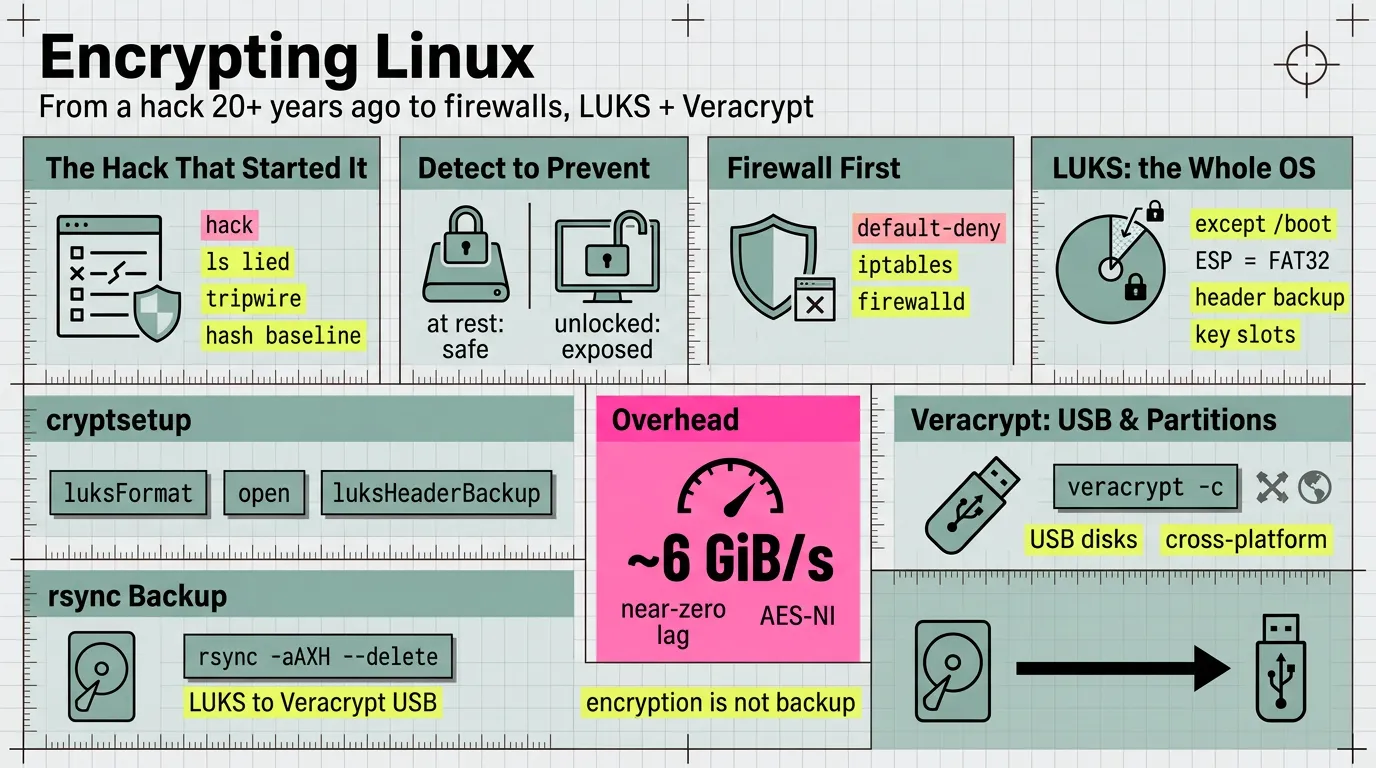

Encrypting Linux: from a hack 20+ years ago to firewalls, LUKS and Veracrypt

Arch Linux. firewalld (nftables) for the network, then LUKS-encrypted root, an unencrypted /boot, and a Veracrypt USB volume.

My experience with Linux dates from over 20 years ago. This is a personal account of how a break-in pushed me from detecting tampering to preventing it — locking the network with a firewall first, then encrypting every disk I own.

1. The hack that started it

• My account: I was installing over a modem back then and got hacked several times. The tell was ls — the listing did not match the files I knew surely were there, so the binaries had been replaced. (This story is also told in the Linux birthday piece: 260828-happy-birthday-linux-from-aix-to-arch.md.)
• The response was tripwire: it builds a database of hashes for installed binaries (e.g. /bin/ls), then protects that database so an intruder cannot quietly rewrite it — the original kept a human-readable database guarded by file permissions and offline or read-only copies, while today’s Open Source Tripwire signs it with passphrase-derived site and local keys. A check compares the current binaries against the baseline; if a binary was upgraded or tampered with, it shows up, and you re-hash and update the baseline.
• Context from those years: package management was weak, so installing a standalone driver sometimes meant compiling the kernel.
• Note: tripwire is largely a historical tool today. Modern file-integrity monitoring: AIDE, or a hand-rolled sha256sum baseline. (pacman -Qk only checks that a package’s files are present; -Qkk adds permissions, size and mtime — neither hashes contents, so a same-size swapped /bin/ls slips through.)

2. The shift: from detection to prevention

• After that, I became quite sensitive to database privacy and security — and spent real time figuring out how data can be secured on disk, and what happens if the laptop is stolen.
• A threat model framing: what encryption does and does not defend against.
  • Protects: data at rest — a powered-off or stolen disk.
  • Does not protect: a running, unlocked machine; malware with the OS already open; and it is only as strong as the passphrase.

3. Firewall first: the network before the disk

• First things first: the break-in arrived over the wire — a dial-up modem, no router, no NAT, the host itself was the perimeter — so the network gets locked before the disk. Close the door before you worry about the safe.
• The lineage: ipchains (kernel 2.2) → iptables (kernel 2.4+) → nftables (kernel 3.13+, the modern engine). On current systems iptables is usually the nf_tables compatibility front-end (check with iptables --version — it typically reports (nf_tables)).
• Raw iptables, default-deny:

  iptables -A INPUT -i lo -j ACCEPT
  iptables -A INPUT -m conntrack --ctstate ESTABLISHED,RELATED -j ACCEPT
  iptables -A INPUT -p tcp --dport 22 -j ACCEPT
  iptables -P INPUT DROP     # set the default last, so you don't drop your own session

  Caution: applying DROP over SSH cuts your own session — allow ESTABLISHED,RELATED and your SSH port first, and keep a second connection open while testing. And without iptables-save (or netfilter-persistent), these rules vanish on reboot.
• Pick one manager: iptables, ufw, and firewalld all front the same kernel netfilter — hand-editing iptables while firewalld runs will just be overwritten.
• I used ufw on Debian years ago, then switched to firewalld as the more standard, universal choice across Linux distros — zones and named services instead of raw chains:

  sudo firewall-cmd --permanent --add-service=ssh
  sudo firewall-cmd --reload
  firewall-cmd --list-all

  A rule added without --permanent is runtime-only; --reload applies what --permanent wrote.
• The boundary: a firewall guards the running, networked machine — it does nothing for a powered-off, stolen disk. That is why encryption comes next.

4. LUKS: encrypting the operating system

• My rule: LUKS encrypts the entire operating system except /boot, which must be readable before any passphrase is entered.
• Timing: LUKS is enabled during OS installation — you set up the encrypted partition before the root filesystem is created. It is not meant to be retrofitted onto a live root disk, short of a reinstall or a risky in-place re-encryption.
• In a typical setup, /boot is the EFI system partition (vfat), the LUKS partition (crypto_LUKS) can hold the root filesystem directly (no LVM needed), and /etc/crypttab records the volumes to unlock at boot.
• Why /boot stays cleartext: firmware and the bootloader must read it before the disk can be unlocked; the UEFI ESP is FAT32 by specification. (To be precise: “/boot must be fat32” really describes the ESP — a separate /boot can be ext4 in non-UEFI setups.)
• The cryptsetup commands involved: luksFormat, luksOpen, luksAddKey / luksChangeKey, luksDump, luksHeaderBackup, and /etc/crypttab for unlocking at boot.
• In practice, at install time and for the header backup:

  cryptsetup luksFormat <partition>
  cryptsetup open <partition> root          # unlock, then mkfs + mount
  cryptsetup luksHeaderBackup <partition> --header-backup-file luks-header.img

  Caution: luksFormat destroys the target partition — confirm the device before running it.
• The gotcha that matters most: back up the LUKS header — lose it and the data is unrecoverable. Multiple key slots allow more than one passphrase.
• Performance: with hardware AES (AES-NI, or ARMv8 crypto extensions) the overhead is small. cryptsetup benchmark typically puts aes-xts 512b at several GiB/s — faster than a typical NVMe’s throughput, so the disk, not the crypto, is the bottleneck. Expect near-zero lag on sequential I/O and low single-digit percentages on random 4K; without AES acceleration the cost jumps to 2–3× or more.
• TRIM/discard: an SSD supports discard, but leaving the discard option off /etc/crypttab and enabling fstrim.timer gives periodic batch TRIM rather than continuous discard — it keeps the drive healthy without leaking which blocks are in use in real time.

5. Veracrypt: encrypted partitions and USB disks

• My rule: Veracrypt (derived from TrueCrypt) encrypts a partition, and is used to encrypt all of my USB disks.
• Timing: unlike LUKS, Veracrypt can be applied later, at any time — create a volume on a disk, partition, or container file whenever you need it, with no reinstall.
• A Veracrypt volume mounts like any other block device — for example at /mnt/usb.
• Why Veracrypt for removable media rather than LUKS: cross-platform containers (Linux/Windows/macOS), and support for hidden volumes.
• Creating a volume is interactive: veracrypt -c walks through volume type (partition vs container file), size, and algorithm. Caution: veracrypt -c overwrites the target — verify the device or path before starting.
• The division of labor: LUKS for the fixed system disk; Veracrypt for portable media you carry between machines.

6. What happens if the laptop is stolen

• At rest, a LUKS disk is useless without the passphrase — that is the whole point, and the reason for pre-boot authentication.
• But the unencrypted /boot still reveals the kernel/initramfs and can be tampered with (evil-maid); a suspended (not shut-down) machine is open to cold-boot/RAM attacks. Those are the honest boundaries.
• What I don’t lose sleep over: /boot is public by design, and with zram swap (in RAM) nothing sensitive spills to disk — the data that matters all lives under /, inside LUKS. Closing the evil-maid path properly means Secure Boot plus a TPM; I accept that residual risk.
• Encryption is not backup: a failed disk or a lost header means total loss. The only protection is an encrypted copy elsewhere.

7. Daily backup: rsync from the LUKS disk to the Veracrypt USB

• The routine: mount the Veracrypt volume, then mirror the LUKS-encrypted home onto it with rsync. Both ends are local block devices decrypted in the kernel, so nothing is handed to a third party — LUKS protects the source at rest, Veracrypt protects the copy at rest.
• With the Veracrypt volume mounted (e.g. at /mnt/usb), the daily command is:

  rsync -aAXH --delete --info=progress2 \
    --exclude='.cache/' \
    --exclude='.local/share/Trash/' \
    $HOME/ /mnt/usb/backup/

• Flag notes: -a archive (which already implies -r / --recursive — recursion is essential for any directory, so a practical rsync should always have it covered); -A/-X preserve ACLs and extended attributes; -H hard links; --delete mirrors deletions (so the copy stays a true mirror); --info=progress2 shows overall progress. The trailing slash on the source means “contents of”.
• First run: add -n / --dry-run to preview exactly what would change, then drop it.
• To make it truly daily, schedule it (systemd timer or cron) and guard on the USB being present and mounted.

8. Habits

• Security became a default, not a rescue: firewalld on the network (the ipchains → iptables → nftables engines), luks + veracrypt on every disk, and no remote session without openssh.
• The through-line from back then: security as a habit, not a one-time fix (see 260828-happy-birthday-linux-from-aix-to-arch.md and 260706-brave-post.md).

Open questions

• LUKS1 or LUKS2? Detached header, or attached?
• Where is the LUKS header backup actually stored, and how is it tested?
• Which integrity tool (if any) replaced tripwire?
• Is the daily rsync run by hand, or scheduled (systemd timer / cron)?
• Is the firewall default-deny, and in which zone? (the live rules need root to list.)

Verification commands

lsblk -o NAME,FSTYPE,MOUNTPOINT
findmnt -no FSTYPE /
findmnt -no FSTYPE /boot
command -v cryptsetup veracrypt
# firewall
iptables --version; nft --version
command -v firewall-cmd nft
# requires root; inspect key slots and header info
sudo cryptsetup luksDump <luks-device>

Glossary

• LUKS — Linux Unified Key Setup; the standard on-disk format for Linux disk encryption, a front-end over dm-crypt.
• dm-crypt — the kernel device-mapper target that performs the actual disk encryption.
• AES-NI — CPU instructions that accelerate AES encryption; without them LUKS throughput drops sharply.
• Veracrypt — open-source, cross-platform volume encryption, forked from TrueCrypt.
• tripwire — a file-integrity monitor; records baseline hashes, protected by a signed database (early versions kept a human-readable one guarded by file permissions).
• ESP — EFI System Partition; the FAT32 partition holding the bootloader on UEFI systems.
• initramfs — the early-boot filesystem image that unlocks the encrypted root before the real root is mounted.
• threat model — the explicit statement of what you are defending against, and what you are not.
• evil-maid — an attacker with brief physical access tampering with the boot path.
• firewall — the rules that decide which network packets may reach the running machine; the host’s own line of defense.
• ipchains / iptables / nftables — the Linux packet-filter lineage; nftables is the modern in-kernel engine, while iptables is the legacy interface (today usually a nf_tables compatibility layer).
• ufw — Uncomplicated Firewall; Debian/Ubuntu’s plain-language front-end over the same netfilter rules.
• firewalld — a cross-distro firewall daemon; organizes rules into zones and named services instead of raw chains.
• TRIM / discard — SSD maintenance that also reveals which blocks are in use.

Sources

• cryptsetup documentation and man pages (luksFormat, luksHeaderBackup, luksDump).
• Veracrypt documentation (volume types, hidden volumes, cross-platform support).
• Open Source Tripwire upstream README — for the signed-database behavior: Tripwire/tripwire-open-source.
• firewalld documentation (zones, services), the Arch Wiki pages on nftables and iptables, and the ufw man page.
• Cross-links: 260828-happy-birthday-linux-from-aix-to-arch.md, 260706-brave-post.md.
